2U Relay Rack Shelf - Heavy Duty2U Relay Rack Shelf - Heavy Duty

2U Relay Rack Shelf - Heavy Duty

P/N: 2USHL-100



  • Weight capacity: 500 lb (227 kgs)
  • Solid steel construction
  • Zinc finish
  • Designed for large equipment such as Dell, HP, and IBM Blade Centers
  • Full size (double sided)

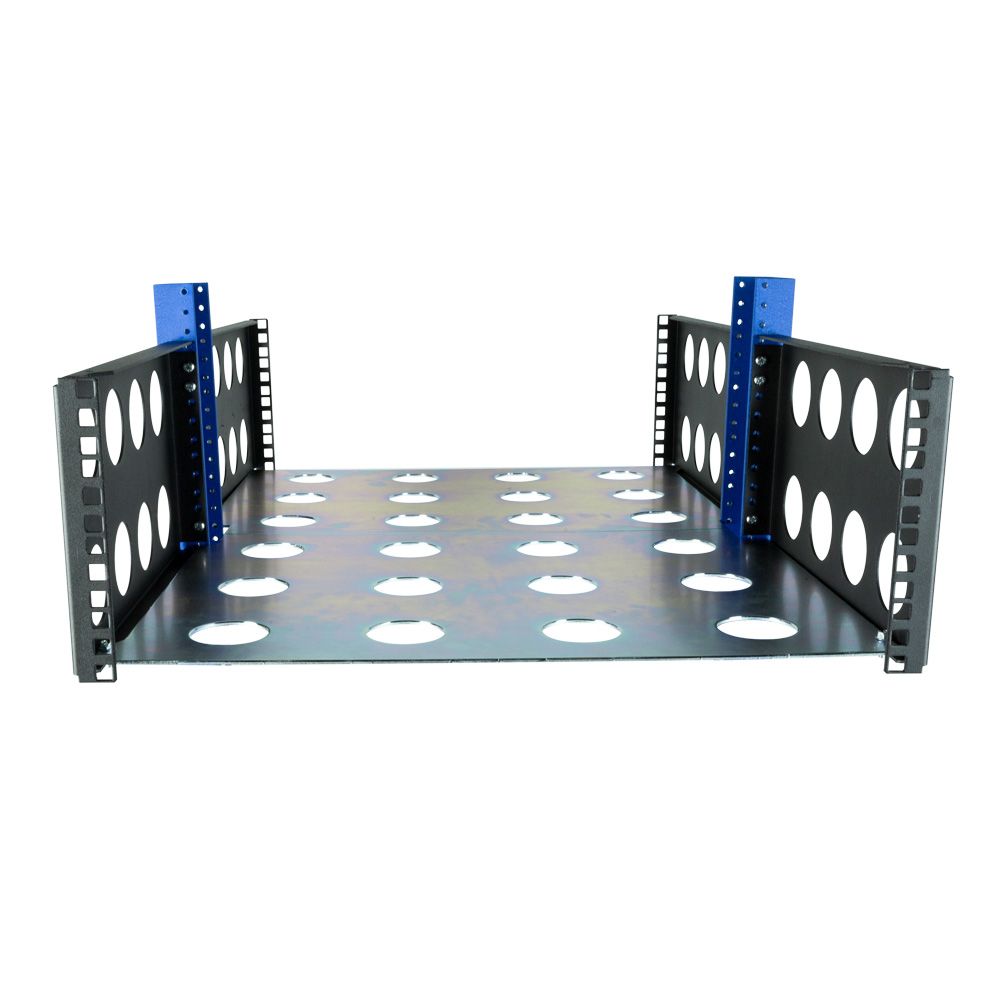

The Relay Rack Shelf- Heavy duty has a shelf surface area of 17.6” x 28” (447 mm x 711 mm) and can hold up to 500 lbs (227 kgs). It’s constructed of solid steel and is designed for the largest and heaviest equipment. For example, large blade centers: IBM, Dell, HP, UPS units, large drive arrays- SAN & NAS appliances, and large chassis servers.

HARDWARE Not Included
CABLE MANAGEMENT CMA Not Included
SIZE (U HEIGHT) 2U
SHELF TYPE Fixed Shelf
SHELF WIDTH 19"
SHELF SIZE Full Shelf
WEIGHT CAPACITY 500lbs
ROHS COMPLIANCE Yes

Download Relay Rack Shelf Heavy Duty Installation Instructions

Download Relay Rack Shelf Heavy Duty Dimensional Drawing
